Centrifugal Pump
TC-21HD & TC-21J

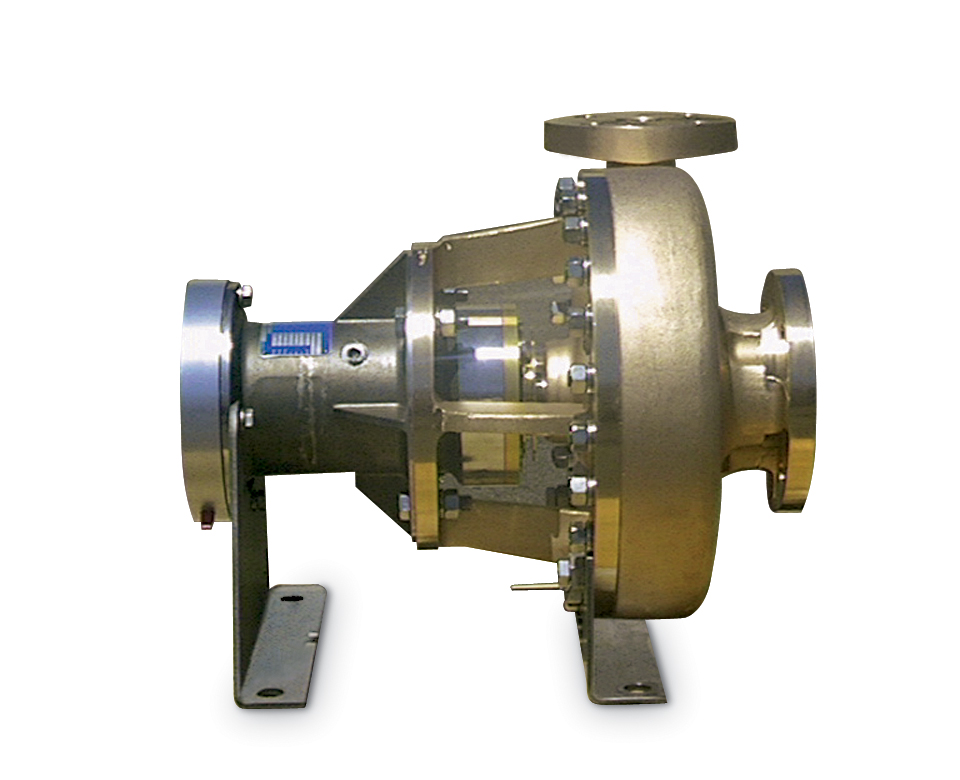

The Model TC-21J & TC-21HD pump assemblies are single-stage, foot mounted pumps. The TC-21J is jackshaft driven by belt and the TC-21HD is designed to be driven by a hydraulic motor. For the TC-21J, the shaft includes standard size keyways at each end; for the TC-21HD, the shaft is splined for hydraulic motor drive The pump features all bronze construction with pump housings, impeller and inducer all made from bronze with a stainless steel shaft. This construction makes the pump ideal for use in liquid oxygen service in addition to other cryogenic liquids.
Features & Benefits
- State-of-the-art CFS mechanical seal for extended life
- High performance impeller provides a high flow rate with minimum NPSH required
- Machined heavy duty stainless steel shaft provides vibration free performance
- All bronze construction allows for oxygen compatibility
Applications
- Trailer off-loading
Liquids Pumped
- Nitrogen
- Oxygen
- Argon
- Methane
Model TC-21J & TC-21HD Table
| Standard | ||
|---|---|---|
| Flow Rate Max. | 1000³/h (4400 gpm) | |
| Head max. | 600m (1,970 ft) | |
| Pumped Liquid | Fluid Temperature Range | -130℃ to +450℃ (-201 to 842°F) |
| Viscosity Max. | 500mPa·s | |
| Design Pressure: | 20MPa (2900 psig) | |
| Casing Material | Austenitic Stainless steel (304SS, 316SS, etc.) |
|
| Motor power range | 0.75 to 250kW | |
| Ex-Protection | Various international explosion-protection (ATEX,IEC,CSA,TRCU, etc.) CE marking | |
Specifications

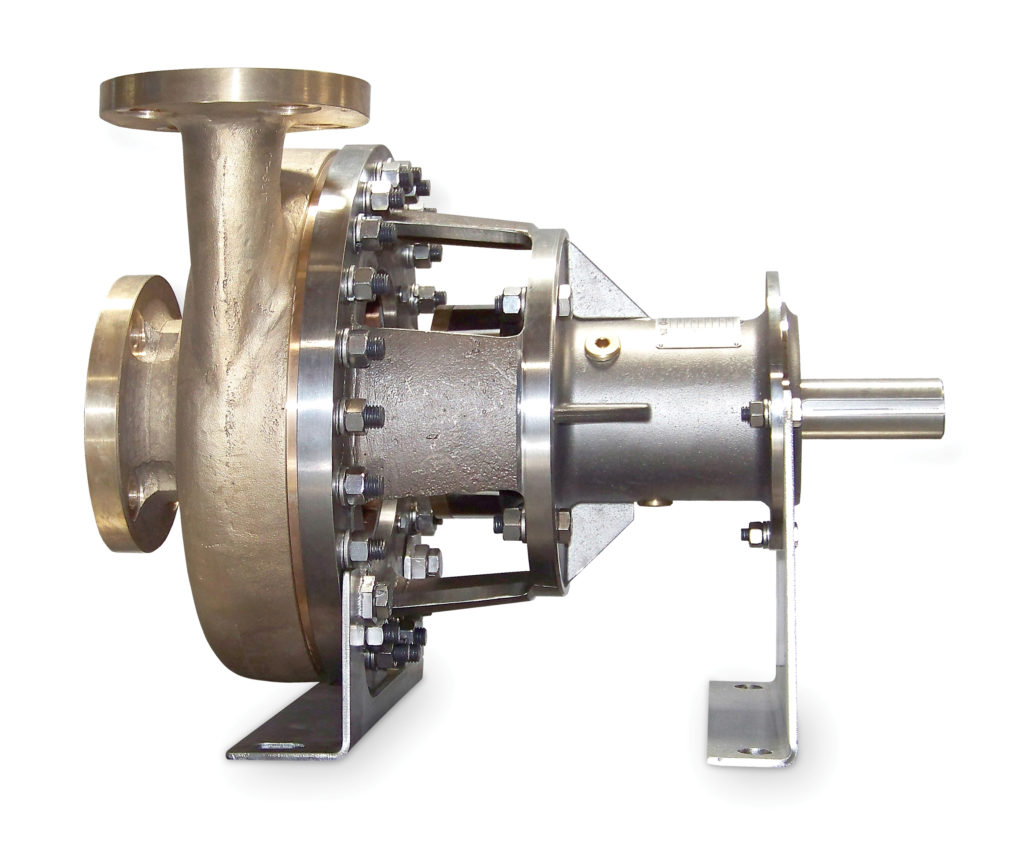

- Optional stainless steel intermediate & backplate
- Speed pick-up & tachometer
- Pump & bearing housing
- SAE-B flange to accept direct hydraulic motor mounting (HD only)
- Mounting brackets with locking tabs
- Port for speed verification
- Purge port (mechanical seal)

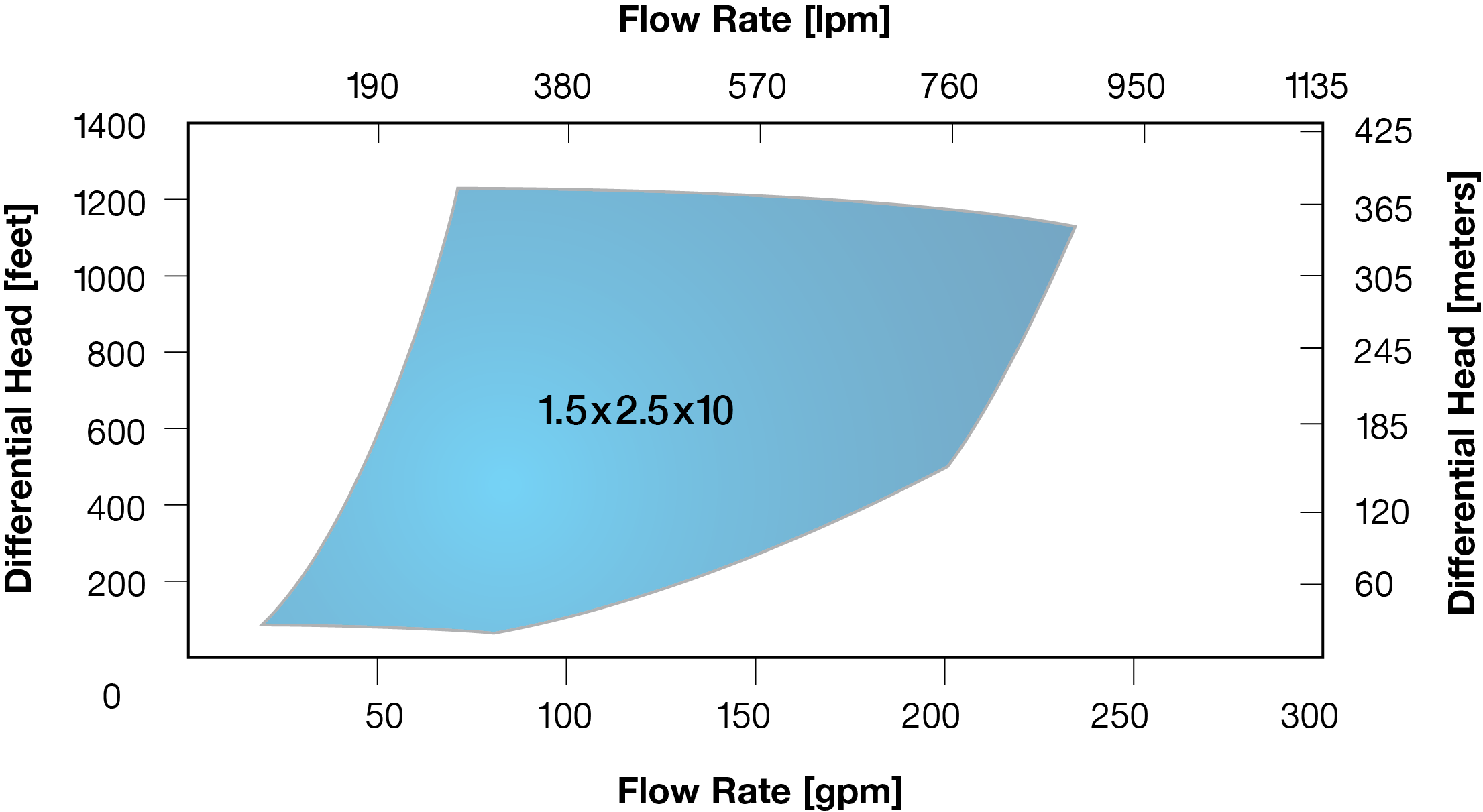

Click chart to open in a new window.
