AC-14M

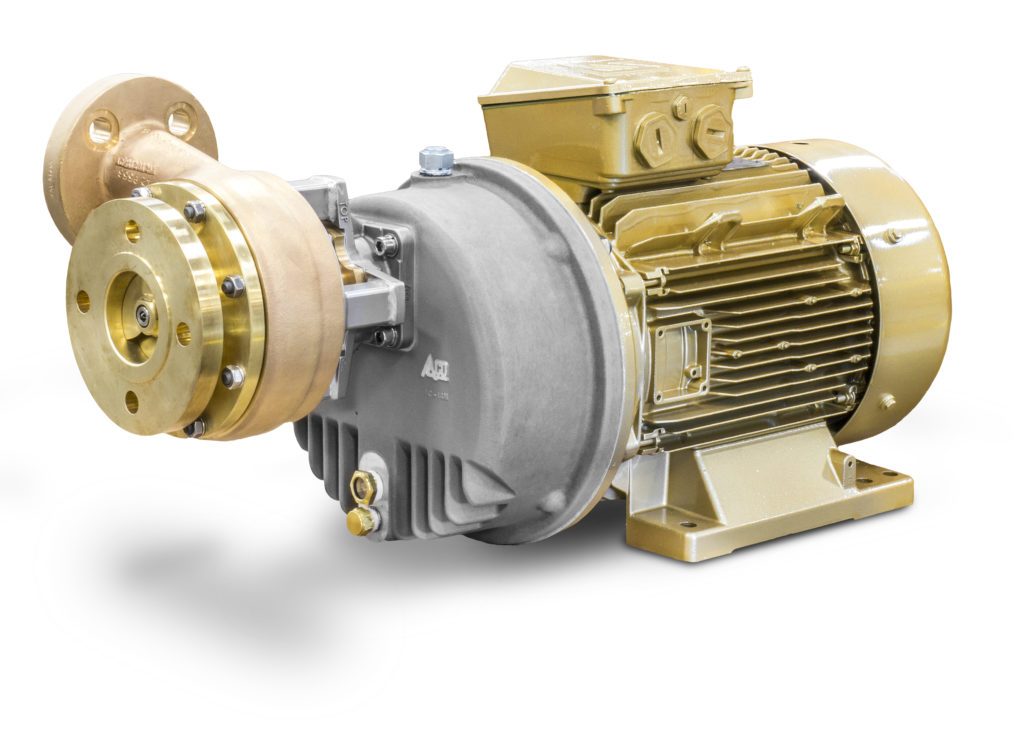

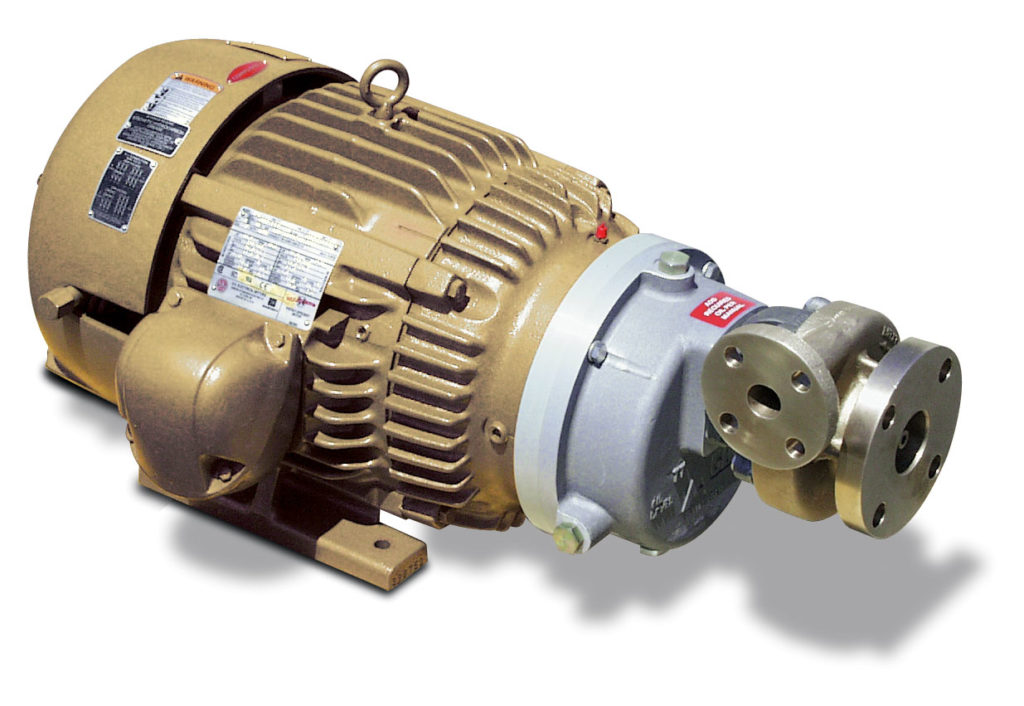

The AC-14 pump is a single-stage gearbox-driven pump. The gearbox is mounted directly on the drive motor. It features all bronze construction with pump housings, impeller, and inducer all made from bronze. The all bronze construction makes the pump ideal for use in liquid oxygen service in addition to other cryogenic liquids. The gearbox provides an efficient means of significantly increasing the pump speed for higher heads and flows. Pump internal efficiency is maximized by the incorporation of minimum recirculation wear rings.

Features & Benefits

  • XP inducer improves NPSH required
  • Gearbox design provides
    • Improved efficiencies at higher speeds
    • Higher operating range (flows & pressures)
    • Splash oil lube system for improved bearing life & lower maintenance requirements
    • Reduced vibration & noise
  • Stainless Steel bearing house reduces “cold creep” into the gearbox

Applications

  • Trailer Loading/Off-loading
  • Liquid Storage Transfer

Liquids Pumped

  • Nitrogen
  • Oxygen
  • Argon
  • Methane (LNG)

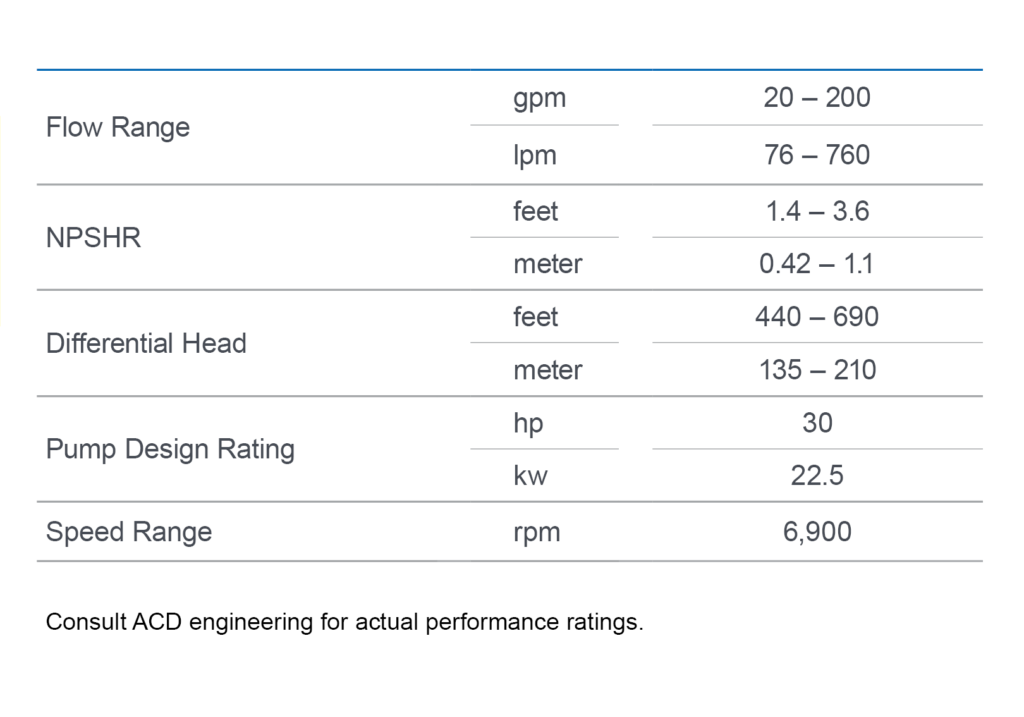

AC-14M Table

Standard
Flow Rate Max.1000³/h (4400 gpm)
Head max.600m (1,970 ft)
Pumped
Liquid
Fluid Temperature
Range
-130℃ to +450℃ (-201 to 842°F)
Viscosity Max.500mPa·s
Design Pressure:20MPa (2900 psig)
Casing Material

Austenitic Stainless steel (304SS, 316SS, etc.)
Alloy20
Hastelloy*1 C/B Equivalent Alloy
Titanium
Zirconium
Monel*2, others Equivalent Alloy

Motor power range0.75 to 250kW
Ex-ProtectionVarious international explosion-protection (ATEX,IEC,CSA,TRCU, etc.) CE marking

Specifications

  • Pump, high performance gearbox drive & TEFC motor with purge ports
  • Splash lubricated gears
  • Long-life (CFS) mechanical seal
  • IEC motor frame
  • All parts interchangeable with comparable pump

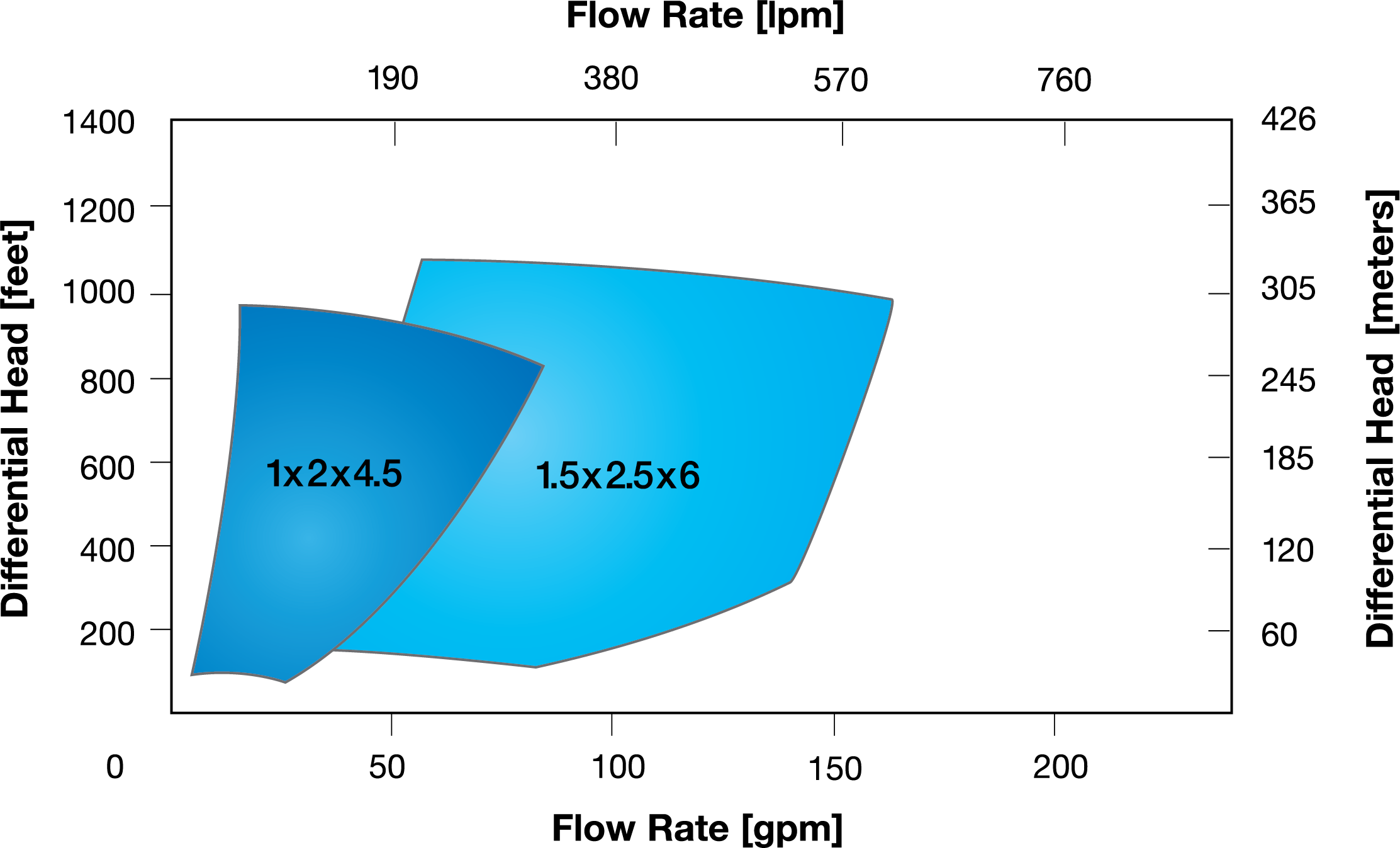

Click chart to open in a new window.
