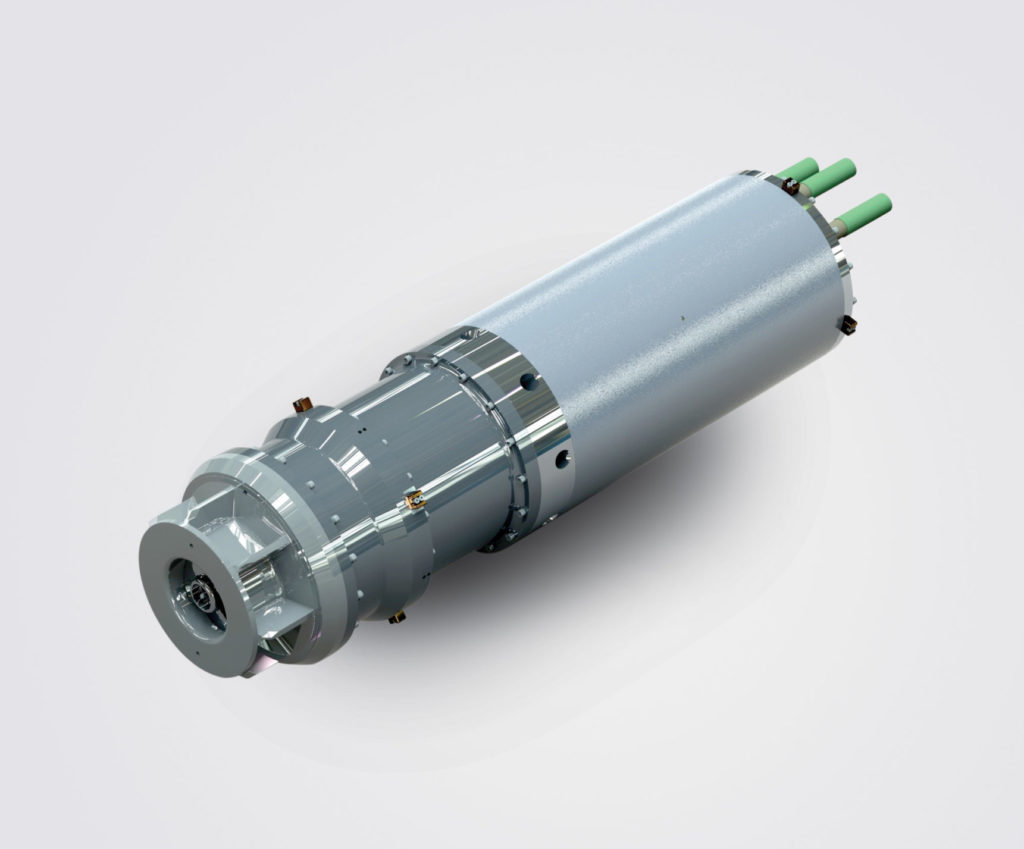

Removable In-Tank

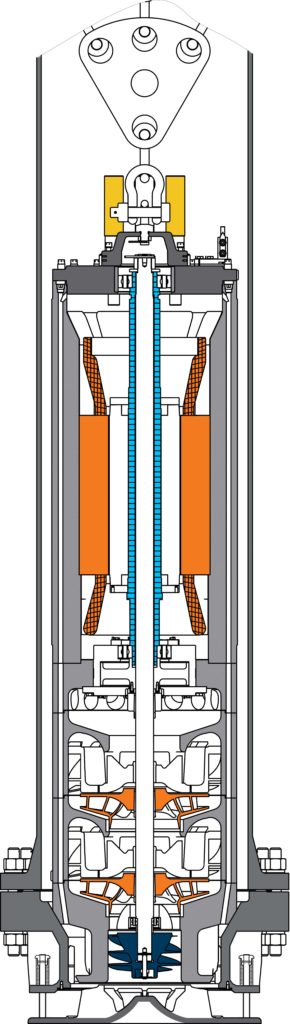

Removable, or in-tank pumps offer the advantage of overhead removal and installation. But, without taking the tank out of service. The pump operates at the bottom of a purpose-built pump column, through which it is installed and removed. The column provides the fluid discharge from the pump to the top of the tank and contains the lifting cables as well as the power cables. Our ZEN (Zero Enabled NPSH) inducer was specially developed to allow the pumps to reduce liquid levels to extremely low levels.

Features & Benefits

  • Allows reducing liquid to extremely low levels
  • Provides fluid discharge from the pump to top of the tank

Applications

  • Clean Energy
  • Industrial Gases

Liquids Pumped

  • LEG
  • LN2
  • LNG
  • LPG
  • Liquid Propylene
  • Other

Specifications

Standard
Flow Rate Max.1000³/h (4400 gpm)
Head max.600m (1,970 ft)
Pumped
Liquid
Fluid Temperature
Range
-130℃ to +450℃ (-201 to 842°F)
Viscosity Max.500mPa·s
Design Pressure:20MPa (2900 psig)
Casing Material

Austenitic Stainless steel (304SS, 316SS, etc.)
Alloy20
Hastelloy*1 C/B Equivalent Alloy
Titanium
Zirconium
Monel*2, others Equivalent Alloy

Motor power range0.75 to 250kW
Ex-ProtectionVarious international explosion-protection (ATEX,IEC,CSA,TRCU, etc.) CE marking
