Centrifugal Pumps

Fixed In-Tank

Overview
Description
Specifications

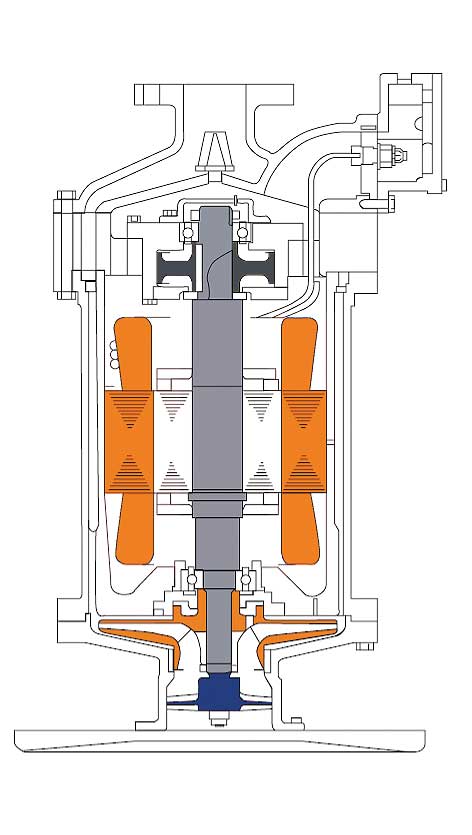

This type of pump is mounted directly to supports in the bottom of a storage tank. In addition, it is connected to a discharge pipe that extends to the top of the tank and out to the discharge piping. This simple, low cost design is used in liquefied gas carriers. It is also used in other applications where a normal or required process includes removing the liquid from the tank for maintenance. As a result, this can be accomplished without excessive costs to the tank or system.

Features & Benefits

  • Mounts directly to bottom of storage tank
  • Simple, low-cost design
  • Minimizes costs

Applications

  • Clean Energy
    • Marine (LNG)
    • Hydrogen
    • Fracking
  • Industrial Gases

Liquids Pumped

  • LEG
  • LN2
  • LNG
  • LPG
  • Liquid Propylene
  • Other

Specifications

Standard
Flow Rate Max.1000³/h (4400 gpm)
Head max.600m (1,970 ft)
Pumped
Liquid
Fluid Temperature
Range
-130℃ to +450℃ (-201 to 842°F)
Viscosity Max.500mPa·s
Design Pressure:20MPa (2900 psig)
Casing Material

Austenitic Stainless steel (304SS, 316SS, etc.)
Alloy20
Hastelloy*1 C/B Equivalent Alloy
Titanium
Zirconium
Monel*2, others Equivalent Alloy

Motor power range0.75 to 250kW
Ex-ProtectionVarious international explosion-protection (ATEX,IEC,CSA,TRCU, etc.) CE marking
